Can You 3D Print a Replacement for Broken Cabinet Hinges?

The Engineering Challenge: Can 3D Printing Replace Steel?

Finding a replacement for a broken cabinet hinge often feels like a scavenger hunt through hardware store aisles, only to realize your specific model was discontinued a decade ago. For the serious maker or small shop owner, the immediate thought is to 3D print a solution. However, the transition from printing decorative figurines to functional, load-bearing hardware is a significant leap in engineering requirements.

Standard cabinet hinges are typically stamped from steel or cast from zinc alloys. These materials possess isotropic strength—meaning they are equally strong in all directions—and high resistance to "creep," which is the tendency of a material to deform permanently under constant stress. When we attempt to replicate this with FDM (Fused Deposition Modeling) technology, we encounter the reality of anisotropic strength. In a 3D-printed part, the bond between layers (the Z-axis) is typically 30-40% weaker than the strength along the continuous strands of plastic in the XY-plane.

To successfully print a hinge that won't snap the first time you reach for a coffee mug, you must move beyond hobbyist materials and embrace engineering-grade plastics and specialized hardware like the QIDI MAX4 3D Printer, which provides the thermal environment necessary for these advanced polymers.

The Material Science of Load-Bearing Parts

The most common mistake in household repairs is reaching for standard PLA (Polylactic Acid). While PLA is easy to print and rigid, it has poor creep resistance. A cabinet door exerts constant "dead load" on the hinge pins. Even with 100% infill, a PLA hinge will likely begin to sag or deform within weeks, eventually leading to a door that no longer closes flush.

Why Engineering Filaments are Non-Negotiable

To match the performance of metal, we look toward composites. Research into Advanced Materials for Additive Manufacturing by NIST highlights how fiber reinforcement changes the mechanical landscape of printed parts.

• PET-CF (Carbon Fiber Reinforced PET): This is often the "Goldilocks" material for home hardware. PET-CF Filament offers a high tensile strength of approximately 72 MPa and, more importantly, excellent creep resistance. The carbon fiber mesh inside the plastic acts as a structural skeleton, preventing the polymer chains from sliding past each other under long-term load.
• PAHT-CF (High-Temperature Nylon): For hinges located near ovens or in humid environments like bathrooms, PAHT-CF (PPA-CF) Filament is superior. It maintains its mechanical properties even when exposed to heat and moisture, which typically degrades standard nylons.

Logic Summary: Our material recommendations are based on a comparative analysis of tensile strength and creep data. While PLA is sufficient for static brackets, functional hinges require a "Vicat Softening Temperature" and "Heat Deflection Temperature" (HDT) significantly higher than ambient kitchen temperatures to ensure long-term dimensional stability.

Design for Additive Manufacturing (DfAM) Strategies

You cannot simply "3D scan and print" a metal hinge and expect it to work. Metal is much denser and stronger per cubic millimeter. To compensate, you must apply specific design heuristics derived from shop-floor experience.

1. The 50% Thickness Rule

As a rule of thumb, any section of a hinge that was originally metal should be increased in thickness by at least 50% in the printed version. If a steel hinge wing is 2mm thick, your printed equivalent should be at least 3mm. This extra volume compensates for the lower absolute strength of the polymer.

2. Managing Anisotropy and Orientation

The greatest risk to a 3D-printed hinge is "inter-layer delamination." If you print a hinge pin vertically, the shear force of the door will be trying to peel the layers apart.

• The Fix: Always orient the part so that the primary stress forces run along the layers, not across them. For complex hinges, this may mean printing the hinge in separate components and using a metal bolt or a horizontally-printed pin as the pivot.

3. Stress Concentration and Fillets

Sharp 90-degree angles are "stress risers" where cracks typically begin. By adding generous fillets (rounded internal corners) to your design, you distribute the load over a larger area.

The Role of the Printing Environment

Printing with the materials required for these repairs—like ABS-GF or PET-CF—requires more than just a hot nozzle. These materials are prone to warping if they cool too quickly or unevenly.

The Necessity of Active Chamber Heating

When printing a hinge, internal stresses build up as each new layer is deposited. If the "chamber temperature" is too low, the bottom layers will contract while the top layers are still hot, causing the part to lift off the bed or, worse, develop internal micro-cracks that lead to failure later.

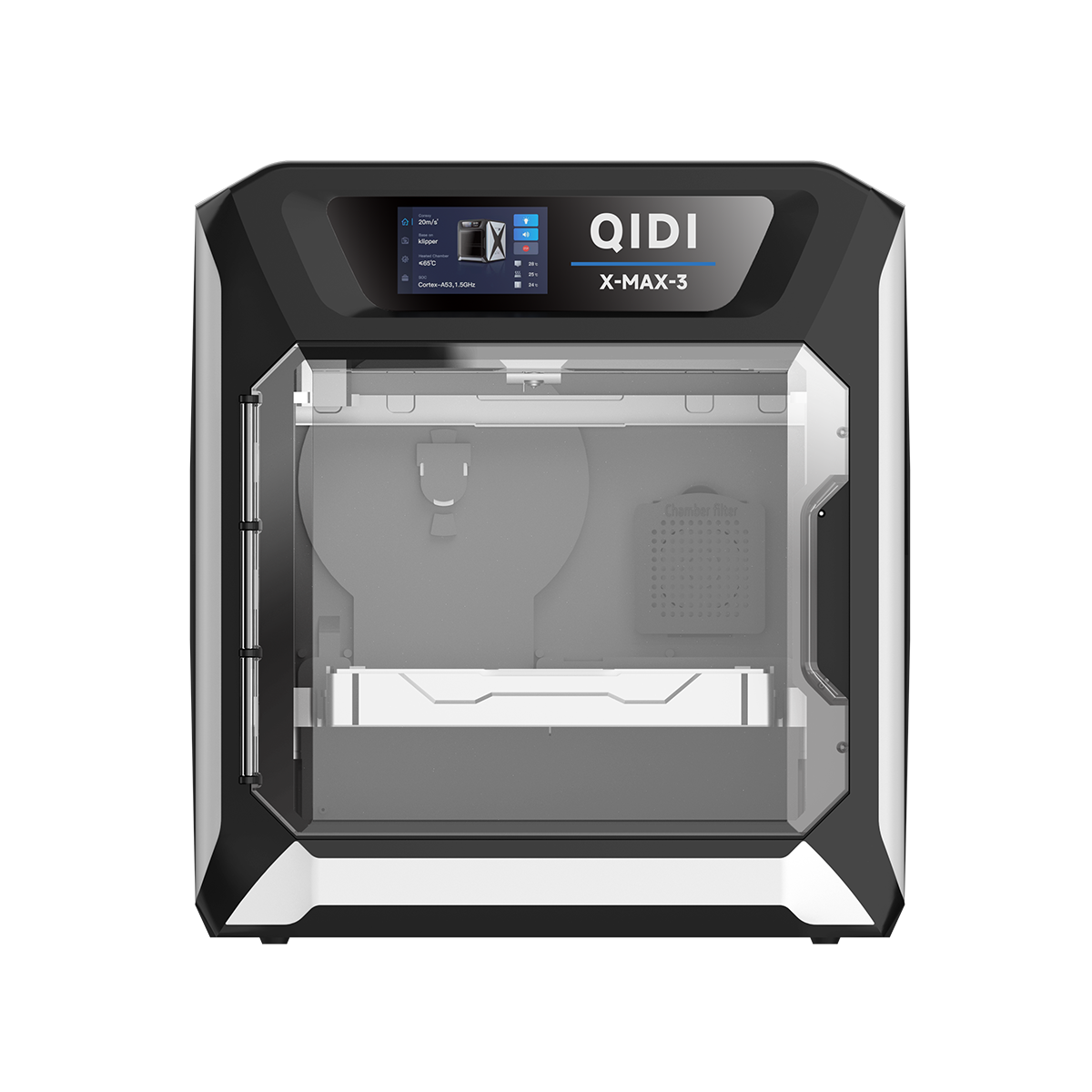

The QIDI MAX4 features an active chamber heater that reaches 65°C. This creates a stable environment for uniform cooling and significantly stronger Z-axis bonds. While the Q2C is an excellent entry point for new users, active chamber heating is a standard feature across the rest of the QIDI lineup. For the specific demands of engineering plastics, the heating performance of the X-Max series remains the professional choice.

Step-by-Step: Printing Your Replacement

1. Measurement and CAD: Use digital calipers to measure the hole spacing of the original cabinet frame. It is often easier to design a "functional equivalent" that fits the existing holes rather than trying to replicate the complex curves of a stamped metal hinge.
2. Material Selection: Choose PET-CF Filament for its balance of strength and ease of use. Ensure the filament is dry; carbon fiber filaments are hygroscopic and will produce weak, brittle parts if they absorb moisture.
3. Slicing for Strength:
   • Wall Loops: Increase to 4 or 6. This ensures the outer "shell" of the part is thick and continuous.
   • Infill: Use 40-60% Gyroid infill. Unlike Grid or Triangle infill, Gyroid provides equal strength in all directions and doesn't have "crossing points" that can cause nozzle snags.
4. Printing: Set your chamber heater to 55-60°C and ensure you are using a hardened steel nozzle, as carbon fiber will quickly erode standard brass nozzles.
5. Post-Processing (Annealing): To reach maximum strength, engineering plastics benefit from annealing. Placing the printed part in a controlled oven at 80–100°C for 4–8 hours allows the polymer chains to further interlock, increasing the heat resistance and mechanical toughness.

The Future of On-Demand Repair

The ability to print functional hardware is a cornerstone of the "Circular Economy." Instead of discarding a whole cabinet or appliance because a small plastic or metal bracket broke, we can manufacture the solution locally. This mirrors larger industrial shifts, such as the Assimilation of 3D printing in smart homes, where additive manufacturing reduces waste and enables customized living environments.

When to Stick to Metal

It is important to recognize the limits. If the hinge is for a heavy, ceiling-height pantry door or a fire-rated door, 3D-printed plastics—even carbon-fiber reinforced ones—may not provide the necessary safety margin. Always test your printed hinge with a weight significantly higher than the intended load before final installation.

Summary Checklist for Success

• Avoid PLA: Use PET-CF Filament or PAHT-CF (PPA-CF) Filament to prevent deformation.
• Overbuild: Increase thickness by 50% compared to the original metal part.
• Control the Heat: Use a printer with a heated chamber, like the QIDI Max4 3D Printer, to ensure layer adhesion.
• Orient for Stress: Align the print so that shear forces don't pull the layers apart.
• Finish Right: Anneal the part to unlock its full engineering potential.

Disclaimer: This article is for informational purposes only. 3D-printed parts may have different failure modes than traditional hardware. Always exercise caution when using printed parts in load-bearing or safety-critical applications. Consult with a structural professional if you are unsure of the mechanical requirements for your specific repair.
